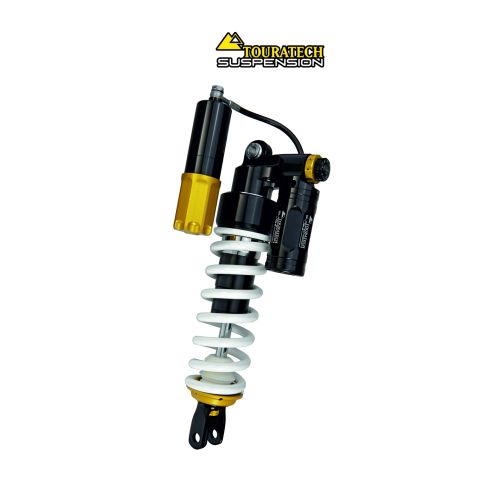

Touratech Suspension PRO shock absorber for Yamaha Ténéré 700 World Raid from 2022 Type Extreme

The Touratech Suspension PRO shock absorber for the Yamaha Ténéré 700 World Raid focuses on top performance under extreme conditions. The new damper piston design has enabled optimised oil flow behaviour. Even at the highest damping frequencies, such as those that occur during fast trail rides, the formation of oil foam is prevented. This means that the damping behaviour of the Touratech Suspension PRO shock remains absolutely consistent over a huge load spectrum. In addition, the new low-friction seal on the massive 16 mm piston rod has extremely low friction values, resulting in an exceptionally low breakaway torque and sensitive response. Annoying jerking, also known as the slip-stick effect, is alien to PRO dampers. These features ensure the best traction, stability and comfort in all conditions.

Easy situational adjustment of setup and balance

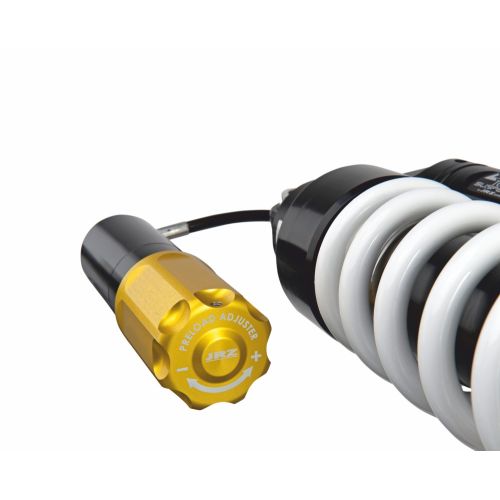

The particularly robust "PRO Preload Adjuster" ensures simple and fast adjustment of the balance of the motorcycle to the respective load condition – solo rides, or tours with a partner plus a lot of luggage. The preload of the spring can be easily adjusted over a wide range of settings at comparatively low operating pressure via the large, easy-grip hand wheel.

Damping

In line with the simple spring preload, this high-end shock absorber has the finest rebound adjustment ever realised in a motorcycle shock absorber. The precise coordination results in optimum ground contact of the tyre with no unpleasant juddering or sagging of the rear, ensuring maximum riding dynamics and the highest level of safety.

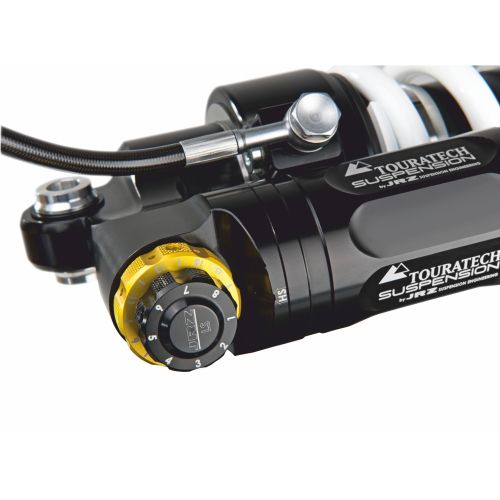

The compression damping can be adjusted over a wide range of settings. With no tools required, even those with less experience can realise individual, reproducible setups that take high and low speed damping into account.

Robust Touratech setup for tough conditions

Thanks to the special Touratech setup, PRO suspension elements for the Yamaha Ténéré 700 World Raid are suitable “out of the box" for off-road use, even with a high payload.

Service-enabled Long Life components

Like all suspension elements from Touratech Suspension, PRO shock absorbers are of course fully service-enabled. From time to time or after severe stress on long-distance journeys, the dampers can be disassembled and overhauled. After that, they are like new again. For consistent performance and sustained riding pleasure.

The facts

• Robust, slim, lightweight precision design with low unsprung masses and maximum strength
• One-piece, milled base part for maximum rigidity and low weight
• New Hyper Flow damper piston for optimum oil flow regardless of operating temperature
• Low-friction seal for exceptionally low breakaway torque and sensitive response
• Robust "PRO Preload Adjuster" with wide range of settings, easy-grip hand wheel and low operating pressure
• Newly developed PRO rebound tuning with precise and effective click-adjustment
• Simple tuning of compression damping in the high and low speed range via adjustment wheels. Exact reproducibility thanks to cleanly engaging "clicks" and numerical scale
• High-quality Uniball bearings with minimum tolerances for highest wear resistance
• Robust Touratech setup for a wide range of applications
• End stop with progressive buffer
• Fully service-enabled

Scope of delivery:

- Ready-to-install shock absorber, type Extreme

- GOP documents

- Installation instructions / user manual

If you have further questions,

we would be happy to advise you personally. Please contact us.

Email suspension@touratech.de Phone +49 (0)7728-9279-1555

Please use our suspension check list and send us the completed form.
