Touratech Suspension WTE Lowering SET -35mm Type Extreme for Yamaha 700 Ténéré (2019-2024)

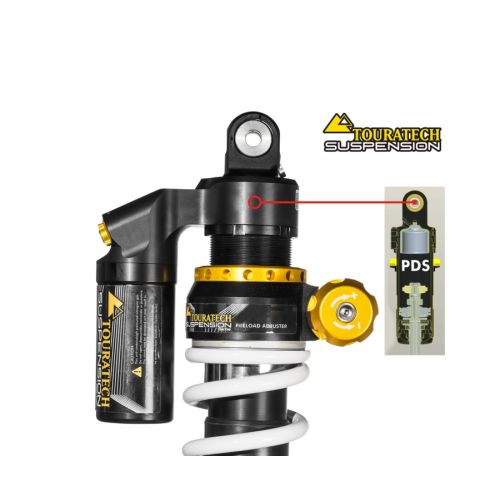

This World Travel Edition SET is perfect for reducing the seat height (-35mm) on the Yamaha 700 Ténéré. Your Yamaha 700 Ténéré stays well tuned and ideally suited to touring use. and the most extreme demands. The Extreme - Set is fitted with a position sensitive damping system (PDS), which utilises a second damping piston to provide hydraulic protection against bottoming out. Even fully laden with luggage under the most extreme off-road conditions, the bike will not bottom out and shock absorber including cartridge is protected against mechanical overload. Damping characteristics change depending on the road surface. When riding under most conditions, the shock absorber is comfortably adjusted for a less strenuous ride, before the PDS kicks in for the last portion of the stroke.

Facts at a glance:

- This Suepension SET is configured and adjusted ready for use based on our experience with the Yamaha Ténéré 700.

- The parameters are: vehicle weight / shock absorber pivot point / design constraints / test rides.

- With this SET, the rear and front area of the motorcycle are adjusted and in perfect balance.

Please note:

To ensure the parked stability of your Yamaha 700 Ténéré after it has been lowered, we recommend using shorter kick stand and/or the centre stand.

The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible

for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage.

Please fill out our suspension check form and send it back to us.

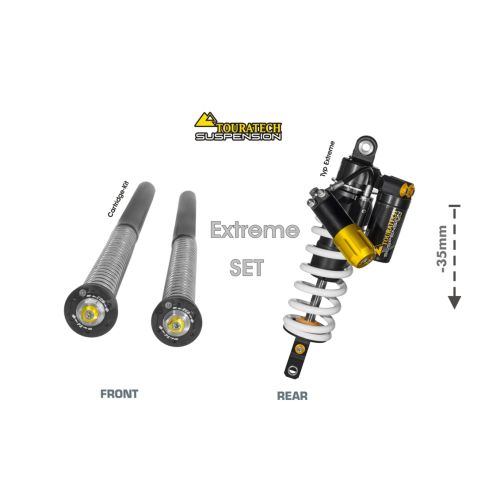

Scope of delivery:

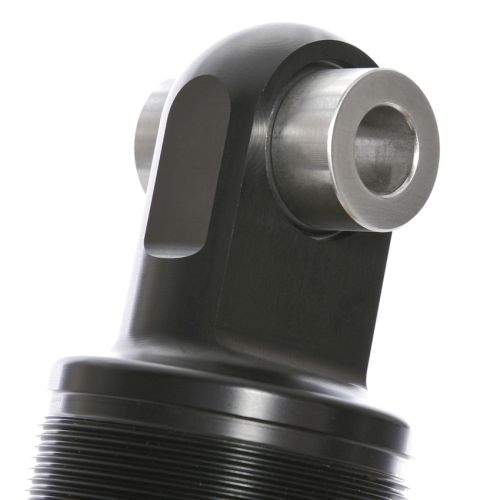

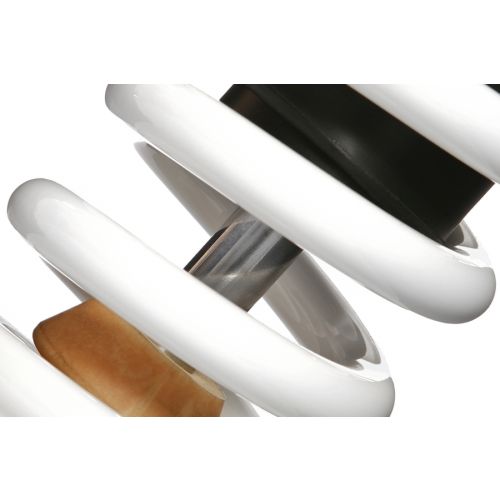

- Ready-to-mount shock absorber Typ Extreme -35mm (01-632-5870-0)

- Ready – to mount -Cartridge Kit Extreme -35mm. (01-632-5876-0)

- General Operating License

- Mounting instructions / user manual ONLINE

Suitable for:

• T700
• T700 Rally Edition (not Rally)

If you have any further questions, we will be happy to advise you.
